Type and Specifications of the Mobile Parts Welder |
| |

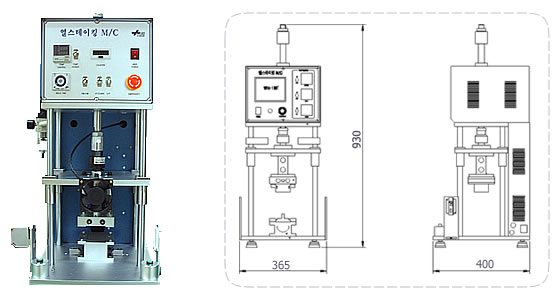

 01. WINH-1INT |
| |
 |
| |
|
¡Ü Feature
| |
 |
One-side welding machine. |
| |
|
Fusion Intenna running up and down the side. |
| |
|
With precision thermostat to maintain the temperature. |
| |
|
Maintain a robust, accurate and durable
|
|
|
| |
|
| |

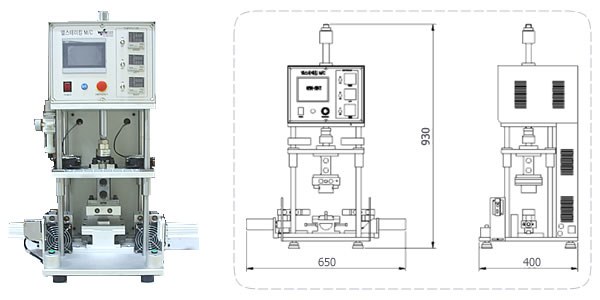

| 02. WINH-3INT |
| |
 |
| |
|
¡Ü Feature
| |
|
Welding machine on three sides. |
| |
|
The fusion Intenna three sides, Left / Right, Up / Down. |
| |
|
With precision thermostat to maintain the temperature. |
| |
|
Maintain a robust, accurate and durable |
|
|
| |
|
| |

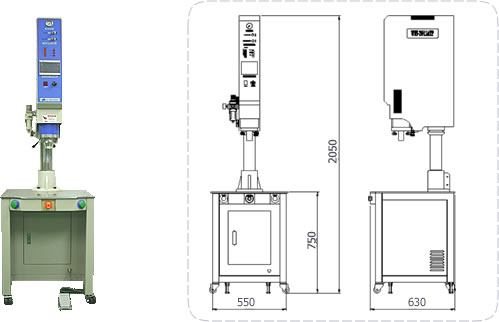

| 03. WIN-2020ATPM |
| |
 |
| |
¡Ü Specifications
| Model |
WIN-2020ATPM |
| Output |
2000 W |
| Power Supply |
AC220V 50/60Hz |
| Frequency |
20 KHz |
| Current |
5 A |
| Size
(WxLxH) |
550 x 630 x 2050 mm |
| Welding Time |
0.01 ~ 5 sec |
| Max. Stroke |
90 mm |
| Oscillator |
BLT (PZT) |
| Cooling Method |
Forced air cooling/FAN |
| HORN/JIG |
Specially designed |
|
¡Ü Feature
| |
|
Built-in current amplifier circuit. |
| |
|
Power-adjustable. |
| |
|
Built-in Auto-tuning/Overload. |
| |
|
Good durability as advanced circuit. |
| |
|
Touch Screen |
| |
|
Easy one-touch operation Air Press |
| |
|
Precision Products jobs in good precision timer. |
| |
|
Leveling device is equipped with settings easily adjustable. |
| |
|
Easy to work the way you move Move Table . |
| |
|
The built-in counter which can check the operation quantity. |
| |
|
With precise strokes. |
| |
|
Freely adjustable head height. |
|
|
| |
|
| |

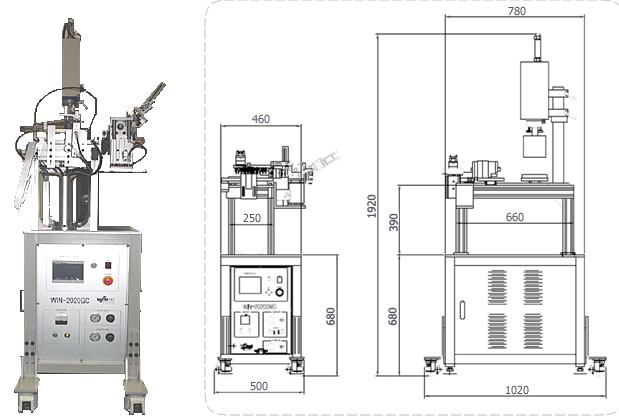

| 04. WIN-2020GC |
| |
 |
| |
¡Ü Specifications
| Model |
WIN-2020GC |
| Output |
2000 W |
| Power Supply |
AC220V 50/60Hz |
| Frequency |
20 KHz |
| Current |
15 A |
| Size
(WxLxH) |
500 x 1020 x 1920 mm |
| Welding Time |
0.01 ~ 9.9 sec |
| Max. Stroke |
75 mm |
| Oscillator |
BLT |
| Cooling Method |
Air-cooled |
| HORN/JIG |
Specially designed |
|
¡Ü Feature
| |
|
Product entry automatically in conjunction with the injection molding machine
|
| |
|
Product entry that is fast and clean
|
| |
|
PLC control system
|
| |
|
Using the touch screen
|
| |
|
Easy one-touch operation Air Press
|
| |
|
Precision Products jobs in good precision timer.
|
| |
|
Leveling device is equipped with settings easily adjustable. |
| |
|
Easy to work the way you move Move Table .
|
| |
|
The built-in counter which can check the operation quantity
|
| |
|
With precise strokes.
|
| |
|
Freely adjustable head height.
|
|
|
| |
|
| |

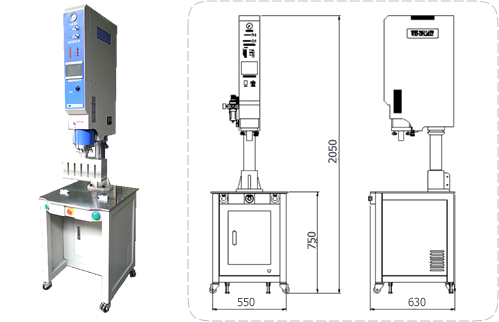

| 05. WIN-3015ATPM |
| |
 |
| |
¡Ü Specifications
| Model |
WIN-3015ATPM |
| Output |
3000 W |
| Power Supply |
AC220V 50/60Hz |
| Frequency |
15 KHz |
| Current |
5 A |
| Size
(WxLxH) |
550 x 630 x 2050 mm |
| Welding Time |
0.01 ~ 5 sec |
| Max. Stroke |
90 mm |
| Oscillator |
BLT (PZT) |
| Cooling Method |
Forced air cooling/FAN |
| HORN/JIG |
Specially designed |
|
¡Ü Feature
| |
|
Built-in current amplifier circuit. |
| |
|
Power-adjustable. |
| |
|
Built-in Auto-tuning/Overload. |
| |
|
Good durability as advanced circuit. |
| |
|
Touch Screen |
| |
|
Easy one-touch operation Air Press |
| |
|
Precision Products jobs in good precision timer. |
| |
|
Leveling device is equipped with settings easily adjustable. |
| |
|
Easy to work the way you move Move Table . |
| |
|
The built-in counter which can check the operation quantity. |
| |
|
With precise strokes. |
| |
|
Freely adjustable head height. |
|
|
| |
|
