Type and Specifications of the Stationery Filing Welder |
| |

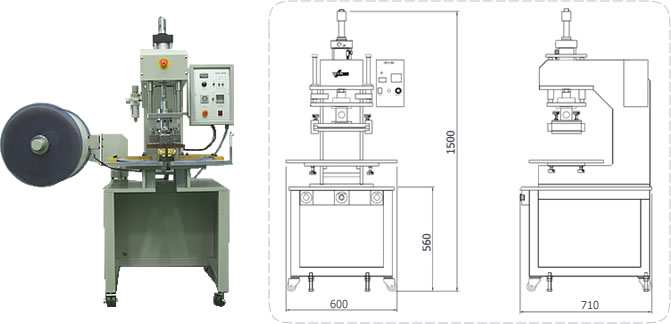

 01. WIN-HIW (File index welder) |
| |
 |
| |
|
¡Ü Feature
|
|
| |
|
| |

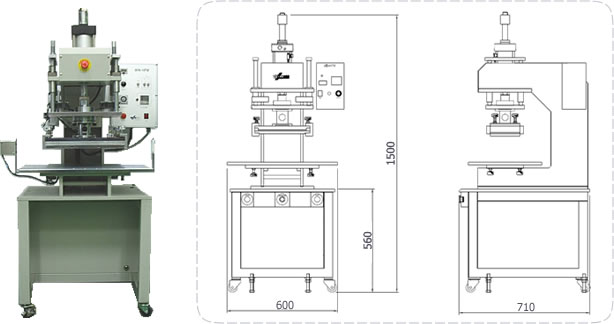

| 02. WIN-HPW (File pocket welder) |
| |
 |
| |
|
¡Ü Feature
|
|
| |
|
| |

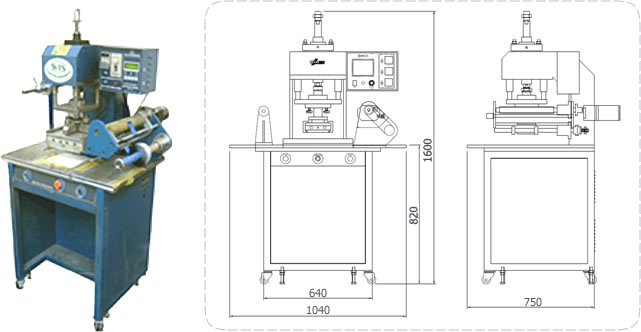

| 03. WIN-HSW (File driving gold) |
| |
 |
| |
|
¡Ü Feature
|
|
| |
|
| |

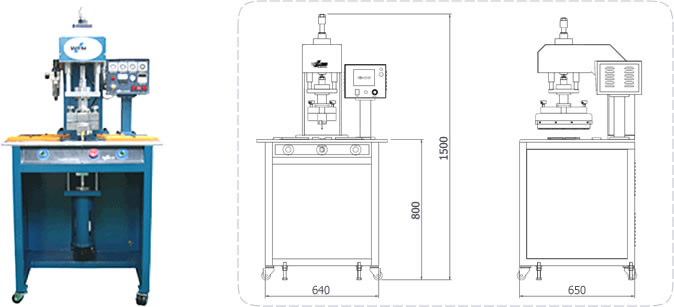

| 04. WIN-2515F (Film welder) |
| |
 |
| |
|
¡Ü Feature
| |
 |
Using heat and ultrasonic welding and good design. |
| |
|
Suitable for welding PP, PE and film.
(15 sheets of PP film welding) |
| |
|
Leveling the heating jig and jig can easily be replaced. |
| |
|
Equipped with a digital thermometer accurate temperature maintenance. |
| |
|
Built-in counter.
|
| |
|
Increasing the quality and reliability of quality using a dedicated microcomputer control. |
| |
|
Timer (DELAY, WELD, and HOLD, AUTO) mode, 1/100 sec.
Maintain a constant unit (0.01 ~ 9.9 seconds). |
| |
|
With precise strokes. |
| |
|
Used to be inside file, Decorative file, L-holder. |
|
|
| |
|
| |

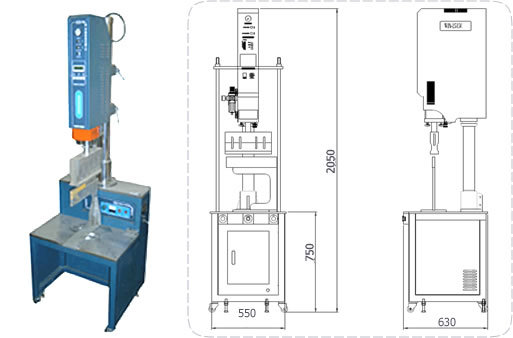

| 05. WIN-2515C (Inside file, Decorative file) |
| |
 |
| |
|
¡Ü Feature
| |
|
PP case welder versatile (File, Album) |
| |
|
Increasing the quality and reliability of high quality
using a dedicated microcomputer control. |
| |
|
Four Timer (DELAY, WELD, HOLD, AUTO) Mode. |
| |
|
Built-in counter.
|
| |
|
Set in units of 1/100 sec (0.01 to 9.9 seconds),
and always maintain a certain product. |
| |
|
There is a full-height adjustment feature can be adjusted according to the need. |
| |
|
With precise strokes.
|
|
|
| |
|
| |
| 06. L-Holder Auto |
| |
 |
| |
|
¡Ü Feature
| |
|
Operation is easy, even for beginners anyone can be produced easily |
| |
|
Automatic welding supply entry to the automatic production |
| |
|
Minute 30EA or production hour over 18000EA
|
| |
|
Excellent adhesion for the work surface clean (Ultrasonic frequency 20kHz Mounting) |
| |
|
Carrying capacity of approximately 2000EA |
| |
|
PCL control method |
| |
|
Touch screen method |
|
|
| |
|
| |
| 07. 10P File Auto |
| |
 |
| |
|
¡Ü Feature
| |
|
Easy to operate, even for beginners, anyone can be produced easily |
| |
|
Can be produced by freely setting inside files 5-10P by selecting |
| |
|
Clean the work surface for excellent adhesion |
| |
|
Inside Paper Auto Supply |
| |
|
Cover Auto Supply |
| |
|
PLC control system |
| |
|
Touch screen method |
|
|
| |
|
| |
| 08. Roll L-Holder Auto |
| |
|
| |
|
¡Ü Feature
| |
|
Easy to operate, even for beginners, anyone can be produced easily |
| |
|
There is no hassle of moving and working twice a built-in gold flicks |
| |
|
Excellent adhesion for the work surface clean (Ultrasonic frequency 20kHz Mounting) |
| |
|
Roll Auto Supply |
| |
|
PLC control system |
| |
|
Touch screen method |
|
|
| |
|
| |
| 09. Made to Order |
| |
|
|
| |
|
