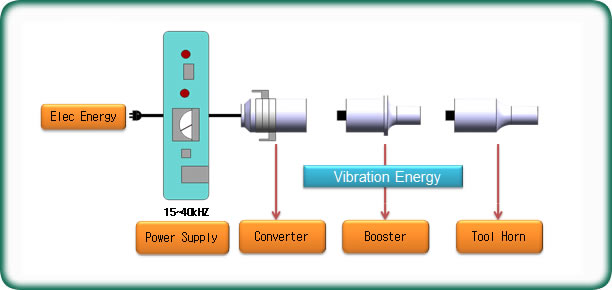

Overview of the ultrasonic welder

  The ultrasonic welder AC 110 ~ 220V, 60Hz (50Hz) of the power oscillator is converted to
mechanical vibration energy, the electrical energy input to the oscillator.
This is the way in which horn for complex joint surface causing strong friction moment,
the bonding surface of the workpiece melt adhesive is strong molecular bonds.


Type and Specifications of the ultrasonic welder

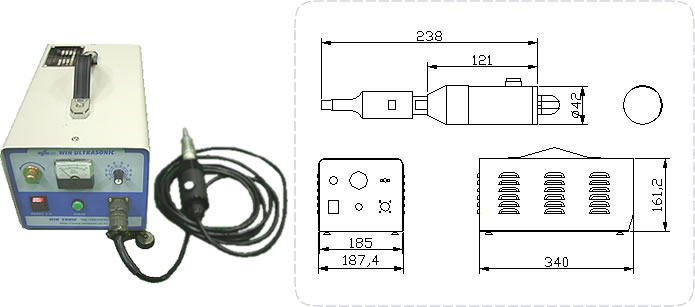

01. WIN-228HP

  Specifications
Model WIN-228HP
Output 200 W
Power Supply AC220V 50/60Hz
Frequency 28 KHz
Current 3 A
Size (WxLxH) 340 x 188 x 162 mm
Welding Time 0.01 ~ 5 sec
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Suitable for spot welding, staking, swaging, inserting.
  Attach the handle is convenient to work.
  Small quantity batch and complex products for easy manual operation.
  Good durability of advanced circuit configuration.
  Output cable length is long, wide working radius.
  Easy to operate, even for beginners, easily operation.
  The precision products widely applied because of the high frequency .
  Weld strength, easy to control the amount of time you want the timer is equipped with .

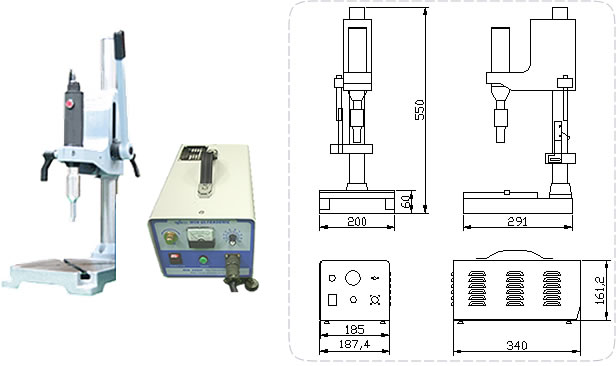

02. WIN-228LP

  Specifications
Model WIN-228LP
Output 200 W
Power Supply AC220V 50/60Hz
Frequency 28 KHz
Current 3 A
Size (WxLxH) 220 x 290 x 162 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 50 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Suitable for spot welding, staking, swaging, inserting.
  Feel less fatigue for the worker to work for a long time because the lever handle.
  Easy to small quantity batch products.
  Good durability of advanced circuit configuration.
  Easy to operate, even for beginners, easily operation.
  The precision products widely applied because of the high frequency .
  Weld strength, easy to control the amount of time you want the timer is equipped with.
  Built-in Devices stroke.
  Freely adjustable head height.

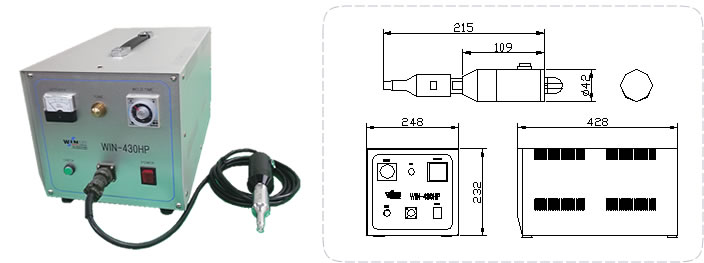

03. WIN-430HP

  Specifications
Model WIN-430HP
Output 400 W
Power Supply AC220V 50/60Hz
Frequency 30 KHz
Current 5 A
Size (WxLxH) 248 x 428 x 232 mm
Welding Time 0.01 ~ 5 sec
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Suitable for spot welding, staking, swaging, inserting.
  Attach the handle is convenient to work.
  Small quantity batch and complex products for easy manual operation.
  Good durability of advanced circuit configuration.
  Output cable length is long, wide working radius.
  Easy to operate, even for beginners, easily operation.
  The precision products widely applied because of the high frequency .
  Weld strength, easy to control the amount of time you want the timer is equipped with .

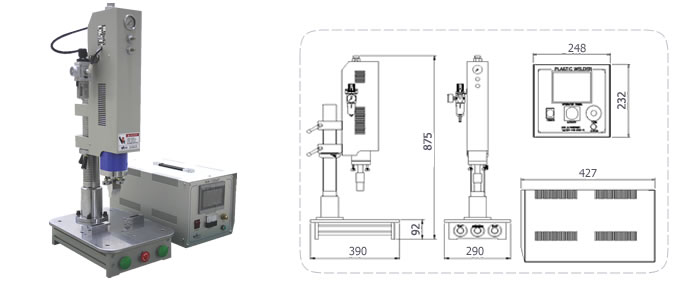

04. WIN-730AJP

  Specifications
Model WIN-730AJP
Output 700 W
Power Supply AC220V 50/60Hz
Frequency 30 KHz
Current 5 A
Size (WxLxH) 390 x 290 x 875 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 70 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  The built-in counter which can check the operation quantity.
  Weld strength, easy to control the amount of time you want the timer is equipped with.
  With precise strokes.
  Freely adjustable head height.


05. WIN-440HPS

  Specifications
Model WIN-440HPS
Output 400 W
Power Supply AC220V 50/60Hz
Frequency 40 KHz
Current 5 A
Size (WxLxH) 390 x 290 x 875 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 70 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Built-in current amplifier circuit.
  Power-adjustable.
  Built-in Auto-tuning/Overload.
  Good durability as advanced circuit.
  Touch Screen
  Precision Products jobs in good precision timer.
  The built-in counter which can check the operation quantity.
  Weld strength, easy to control the amount of time you want the timer is equipped with.

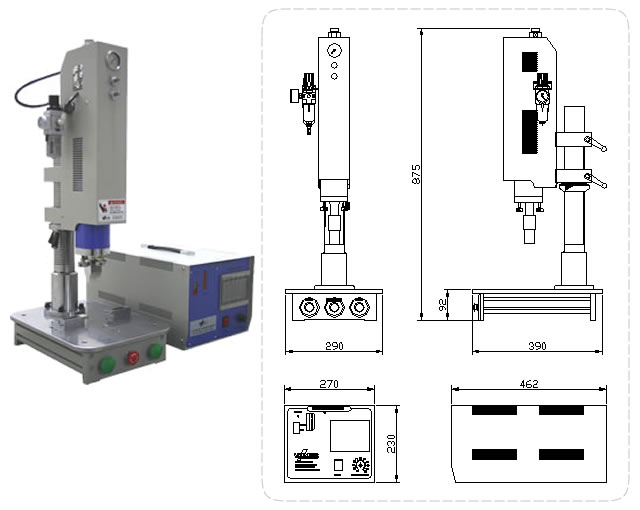

06. WIN-730AJPS

  Specifications
Model WIN-730AJPS
Output 700 W
Power Supply AC220V 50/60Hz
Frequency 30 KHz
Current 5 A
Size (WxLxH) 390 x 290 x 875 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 70 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Built-in current amplifier circuit.
  Power-adjustable.
  Built-in Auto-tuning/Overload.
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  The built-in counter which can check the operation quantity.
  Weld strength, easy to control the amount of time you want the timer is equipped with.
  With precise strokes.
  Freely adjustable head height.

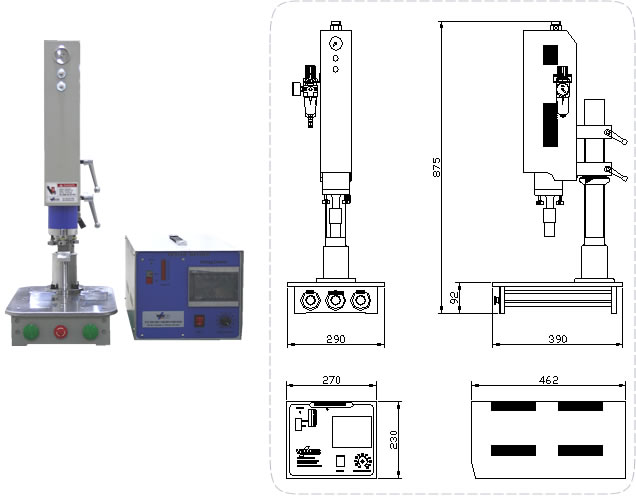

07. WIN-840AJPS

  Specifications
Model WIN-840AJPS
Output 800 W
Power Supply AC220V 50/60Hz
Frequency 40 KHz
Current 5 A
Size (WxLxH) 390 x 290 x 875 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 70 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Built-in current amplifier circuit.
  Power-adjustable.
  Built-in Auto-tuning/Overload.
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  The built-in counter which can check the operation quantity.
  Weld strength, easy to control the amount of time you want the timer is equipped with.
  With precise strokes.
  Freely adjustable head height.

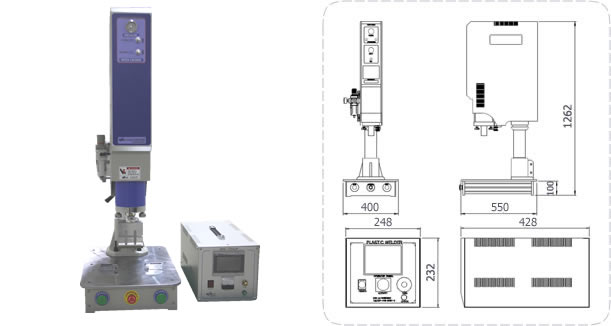

08. WIN-2020AJP

  Specifications
Model WIN-2020AJP
Output 2000 W
Power Supply AC220V 50/60Hz
Frequency 20 KHz
Current 15 A
Size (WxLxH) 400 x 550 x 1262 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 90 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  The built-in counter which can check the operation quantity.
  With precise strokes.
  Freely adjustable head height.

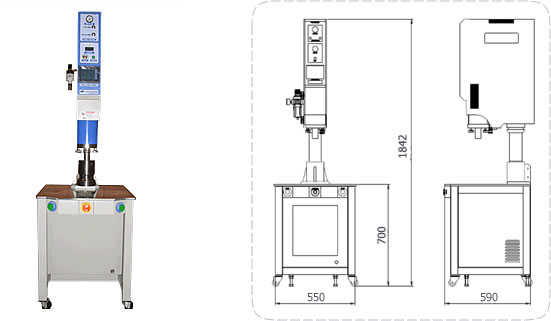

09. WIN-2020ATP

  Specifications
Model WIN-2020ATP
Output 2000 W
Power Supply AC220V 50/60Hz
Frequency 20 KHz
Current 15 A
Size (WxLxH) 550 x 590 x 1842 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 90 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  Easy to work the way you move Move Table .
  The built-in counter which can check the operation quantity.
  With precise strokes.
  Freely adjustable head height.

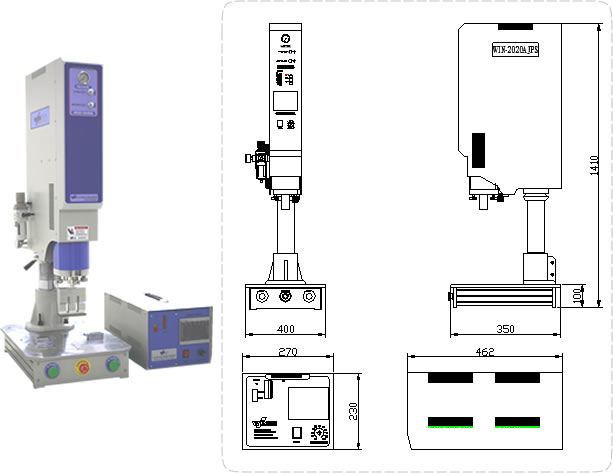

10. WIN-2020AJPS

  Specifications
Model WIN-2020AJPS
Output 2000 W
Power Supply AC220V 50/60Hz
Frequency 20 KHz
Current 15 A
Size (WxLxH) 400 x 550 x 1260 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 90 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Built-in current amplifier circuit.
  Power-adjustable.
  Built-in Auto-tuning/Overload.
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  The built-in counter which can check the operation quantity.
  With precise strokes.
  Freely adjustable head height.


11. WIN-2020ATPM

  Specifications
Model WIN-2020ATPM
Output 2000 W
Power Supply AC220V 50/60Hz
Frequency 20 KHz
Current 15 A
Size (WxLxH) 550 x 630 x 2050 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 90 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Built-in current amplifier circuit.
  Power-adjustable.
  Built-in Auto-tuning/Overload.
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  Easy to work the way you move Move Table .
  The built-in counter which can check the operation quantity.
  With precise strokes.
  Freely adjustable head height.


12. WIN-2515ATP

  Specifications
Model WIN-2515ATP
Output 2500 W
Power Supply AC220V 50/60Hz
Frequency 15 KHz
Current 15 A
Size (WxLxH) 550 x 590 x 1842 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 90 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  Easy to work the way you move Move Table .
  The built-in counter which can check the operation quantity.
  With precise strokes.
  Freely adjustable head height.

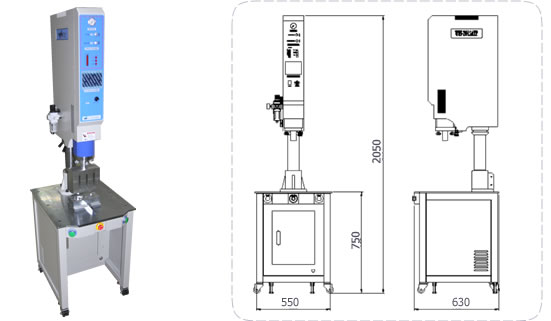

13. WIN-2515ATPM

  Specifications
Model WIN-2515ATPM
Output 2500 W
Power Supply AC220V 50/60Hz
Frequency 15 KHz
Current 15 A
Size (WxLxH) 550 x 630 x 2050 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 90 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Built-in current amplifier circuit.
  Power-adjustable.
  Built-in Auto-tuning/Overload.
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  Easy to work the way you move Move Table .
  The built-in counter which can check the operation quantity.
  With precise strokes.
  Freely adjustable head height.


14. WIN-3015ATP

  Specifications
Model WIN-3015ATP
Output 3000 W
Power Supply AC220V 50/60Hz
Frequency 15 KHz
Current 15 A
Size (WxLxH) 550 x 590 x 1842 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 90 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  Easy to work the way you move Move Table .
  The built-in counter which can check the operation quantity.
  With precise strokes.
  Freely adjustable head height.


15. WIN-3015ATPM

  Specifications
Model WIN-3015ATPM
Output 3000 W
Power Supply AC220V 50/60Hz
Frequency 15 KHz
Current 15 A
Size (WxLxH) 550 x 630 x 2050 mm
Welding Time 0.01 ~ 5 sec
Max. Stroke 90 mm
Oscillator BLT (PZT)
Cooling Method Forced air cooling/FAN
HORN/JIG Specially designed
Feature
  Built-in current amplifier circuit.
  Power-adjustable.
  Built-in Auto-tuning/Overload.
  Good durability as advanced circuit.
  Touch Screen
  Easy one-touch operation Air Press
  Precision Products jobs in good precision timer.
  Leveling device is equipped with settings easily adjustable.
  Easy to work the way you move Move Table .
  The built-in counter which can check the operation quantity.
  With precise strokes.
  Freely adjustable head height.


16. Made to Order

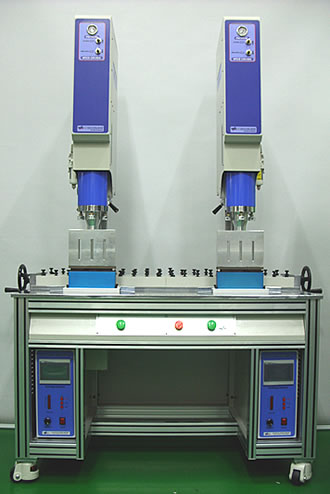

2 Head Welder Mobile Welder

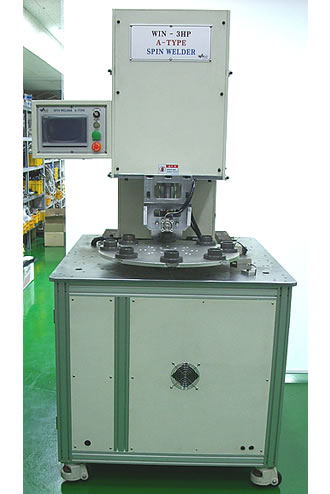

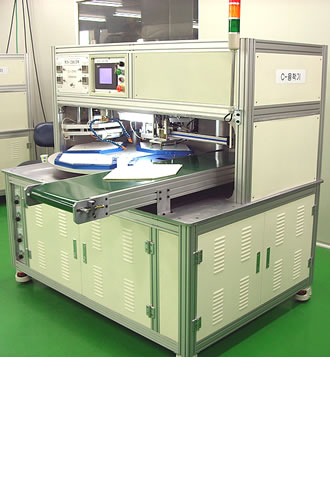

Welder auto-rotation Index Impulse welder

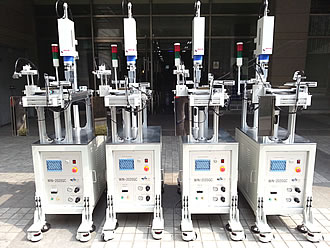

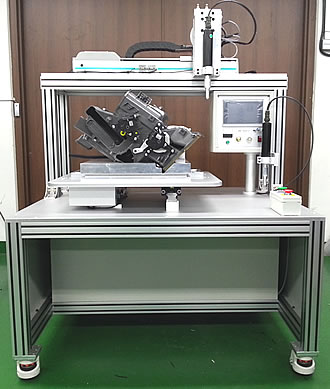

Car parts, auto welder Camera lens, auto cutting machine

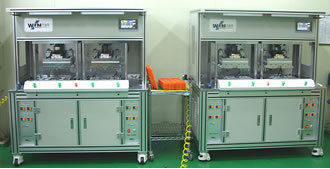

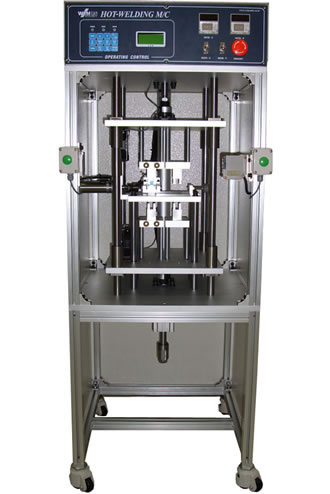

Thermal welding machine
