WIN Utrasonic


Rotary Welder
Overview of the rotary welder


The rotating welding Friction welding is classified as a welding method.
The molten plastic is then forced under pressure by moving to both sides of the weld surface
area for plastic products, causing friction, the frictional heat generated friction welding method,
the welding operation takes place.

In particular, the rotation welding complete welding operations circular rotation under pressure to
melt the weld area and stop the rotation after melting by cooling the pressurized.At this time,
the weld strength of the homogeneous weld material, you can get more than 90% of the raw intensity.

Applies regardless of the directional circular product and heterogeneous materials and welding
than other welding methods are applied. Applies, for example, the fuel filter, washing machine balancer,
fuel tank accessories, floats, sports ball, treasure insulating, insulating bottle, air check valves, connectors, etc..


Type and Specifications of the rotary welder

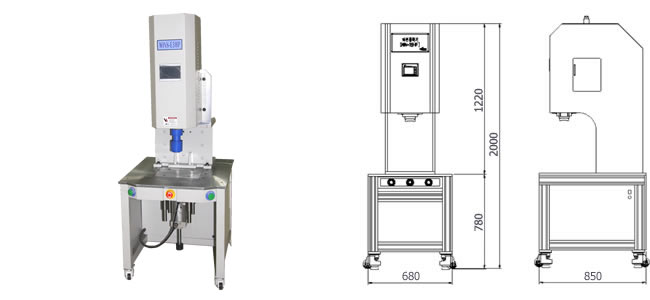

01. WINS-3HP (3 hp rotary welder)

    ¡Ü Feature
  Touch Screen
  PLC control
  Can control the rotation with inverter


Precision stroke unit

  Favorable mechanism for maximum durability and precision
  Difficult round Ultrasonic welding is used
  A fixing the main aux jig-axis will separate welding a wide range of products
  Production can be increased due to the automatic and semi-automatic system attached

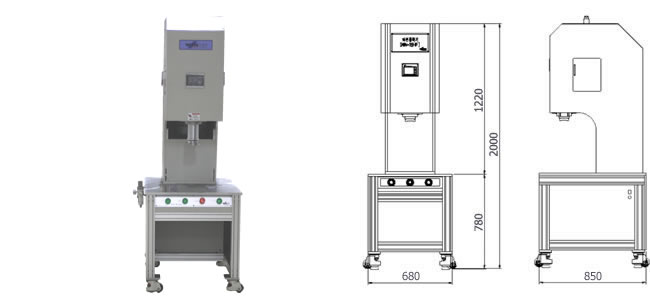

02. WINS-3HP-S (Rotational 3 hp-position control welder)

    ¡Ü Feature
  Angle can be controlled (in position control)
  Touch Screen
  PLC control
  Can control the rotation with inverter


Precision stroke unit

  Favorable mechanism for maximum durability and precision
  Difficult round Ultrasonic welding is used
  A fixing the main aux jig-axis will separate welding a wide range of products
  Production can be increased due to the automatic and semi-automatic system attached


03. WINS-5HP (5 hp rotary welder)

    ¡Ü Feature
  Touch Screen
  PLC control
  Can control the rotation with inverter


Precision stroke unit

  Favorable mechanism for maximum durability and precision
  Difficult round Ultrasonic welding is used
  A fixing the main aux jig-axis will separate welding a wide range of products
  Production can be increased due to the automatic and semi-automatic system attached

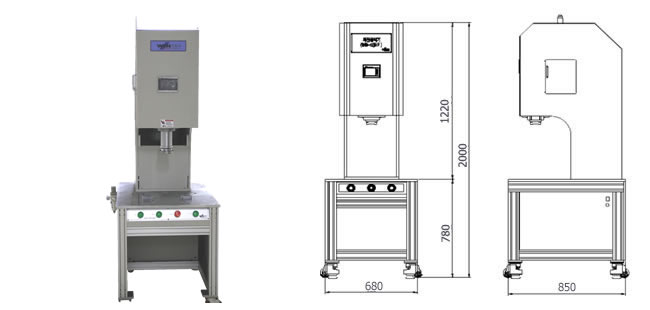

04. WINS-5HP-S (Rotational 5 hp-position control welder)

    ¡Ü Feature
  Angle can be controlled (in position control)
  Touch Screen
  PLC control
  Can control the rotation with inverter


Precision stroke unit

  Favorable mechanism for maximum durability and precision
  Difficult round Ultrasonic welding is used
  A fixing the main aux jig-axis will separate welding a wide range of products
  Production can be increased due to the automatic and semi-automatic system attached


05. WINS-7HP (7 hp rotary welder)

    ¡Ü Feature
  Touch Screen
  PLC control
  Can control the rotation with inverter


Precision stroke unit

  Favorable mechanism for maximum durability and precision
  Difficult round Ultrasonic welding is used
  A fixing the main aux jig-axis will separate welding a wide range of products
  Production can be increased due to the automatic and semi-automatic system attached

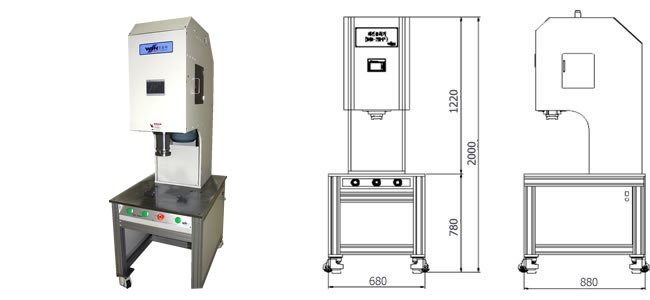

06. WINS-7HP-S (Rotational 7 hp-position control welder)

    ¡Ü Feature
  Angle can be controlled (in position control)
  Touch Screen
  PLC control
  Can control the rotation with inverter


Precision stroke unit

  Favorable mechanism for maximum durability and precision
  Difficult round Ultrasonic welding is used
  A fixing the main aux jig-axis will separate welding a wide range of products
  Production can be increased due to the automatic and semi-automatic system attached


07. Made to Order
